Solar Mounting Systems

Complete range of ground, roof, carport, and tracking mounting structures — engineered for Egyptian climate with 25-year warranty and full certifications.

Download Solar Catalogue PDF

1 / 5

Product Range

Three Application Categories

Ground, roof, and carport mounting systems — each engineered for its specific installation environment with certified wind resistance and 25-year structural warranty.

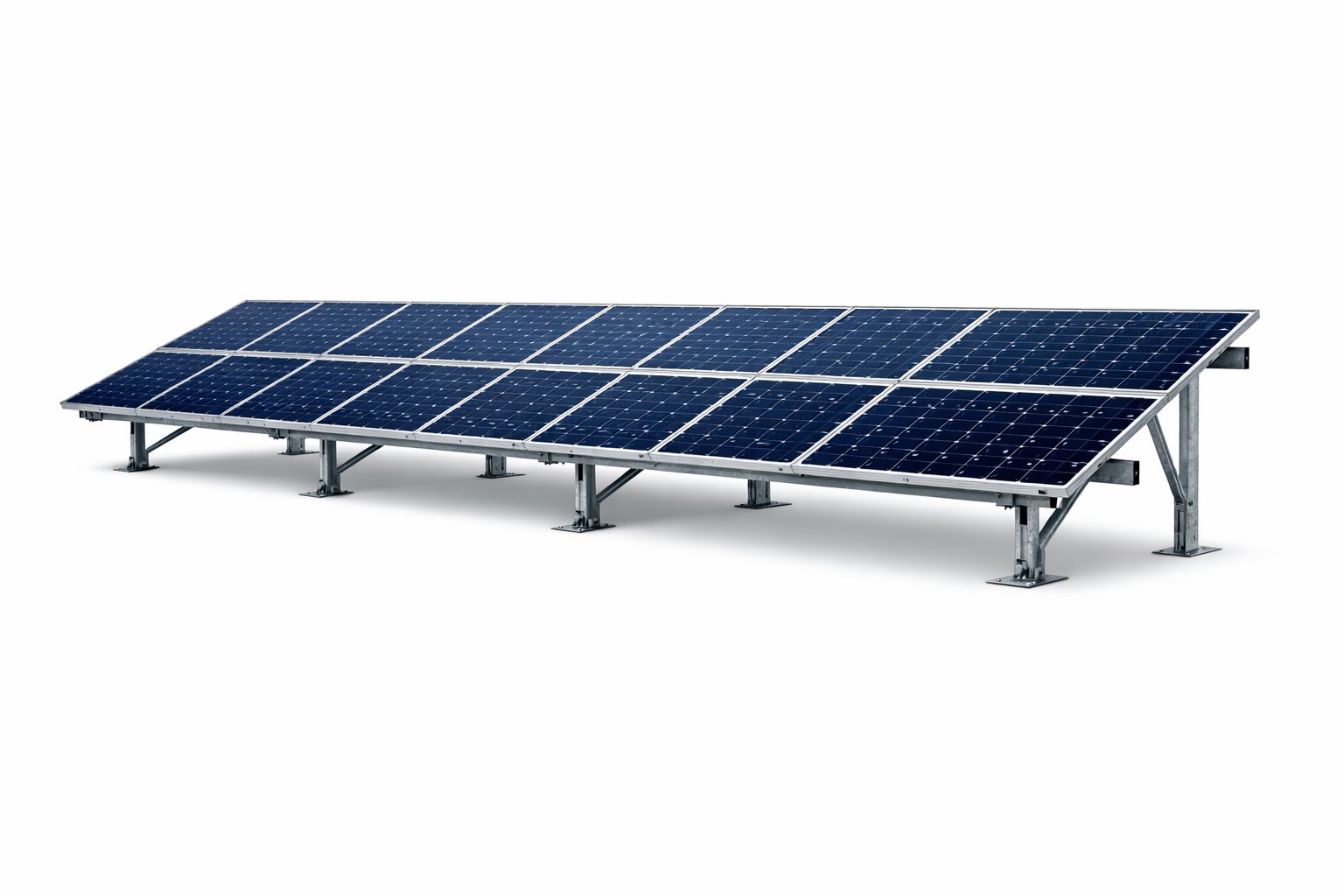

Ground Mount

Concrete floor, ramming & pole systems

3 System Types:

Concrete Floor (≤40°) Ground Ramming (≤60°) Ground Pole (15°–45°)

Key Features:

42 m/s Wind Load 25-Year Warranty Hot-Dip Galvanized Grade 37 Steel ECP 201 Certified

Best for: Open land & desert sites

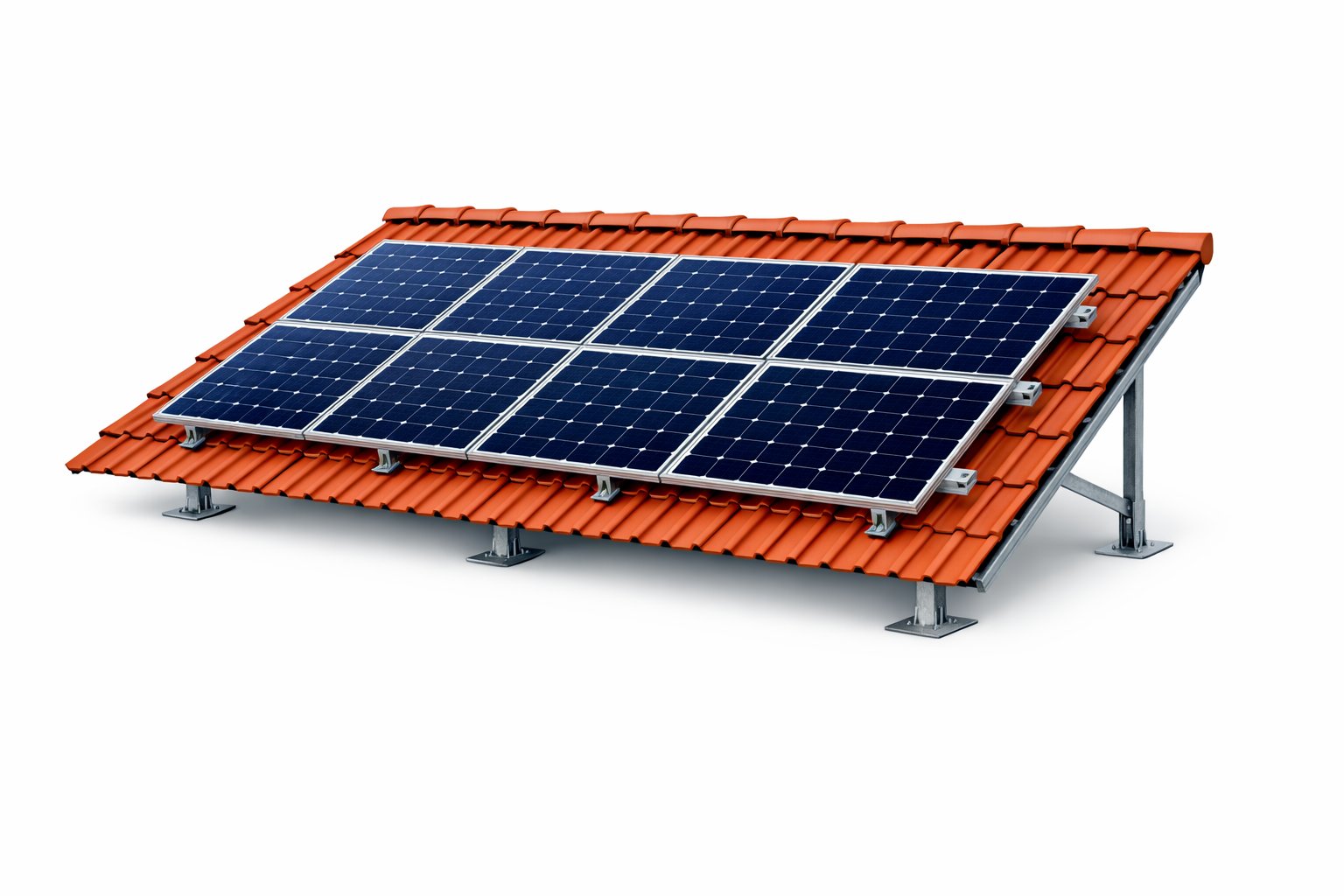

Roof Mount

Flat, corrugated, tile, triangle & adjustable

5 System Types:

Standard Flat (10°/15°) Corrugated Metal Tile Roof (≤45°) Triangle Riser Adjustable Tilt (10–45°)

Key Features:

Aluminum 6063 Buildings ≤25m No Roof Penetration Lightweight Design

Best for: Commercial & industrial rooftops

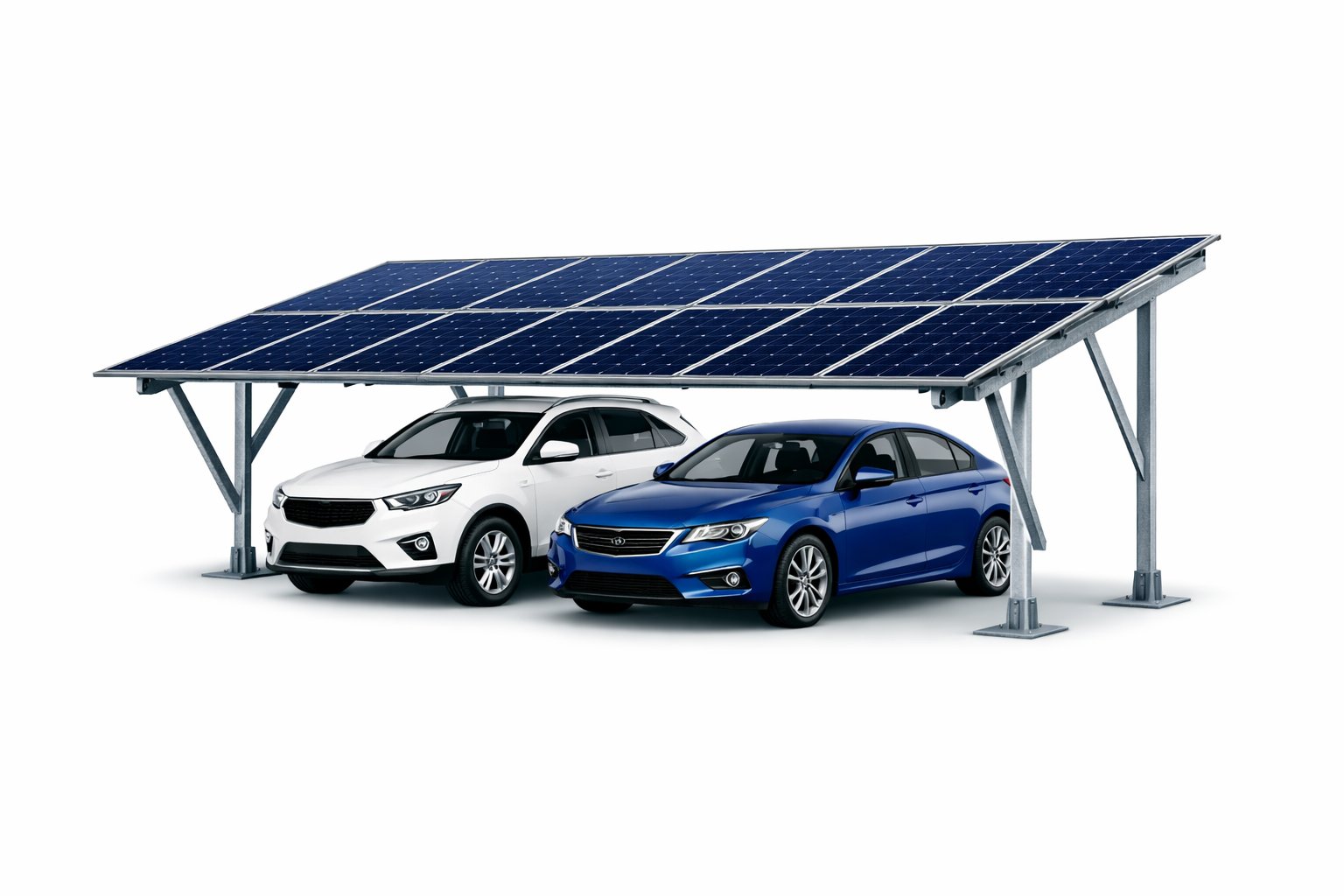

Carport

Solar generation + covered parking in one

Structure Specs:

Panel Tilt ≤30° Hot-Dip Galvanized 25-Year Warranty Single / Double Row EV Charging Ready

Use Cases:

Light Vehicles Heavy Vehicles Fleet Parking Industrial Yards

Best for: Factories, malls & fleet operators

Advanced Technology

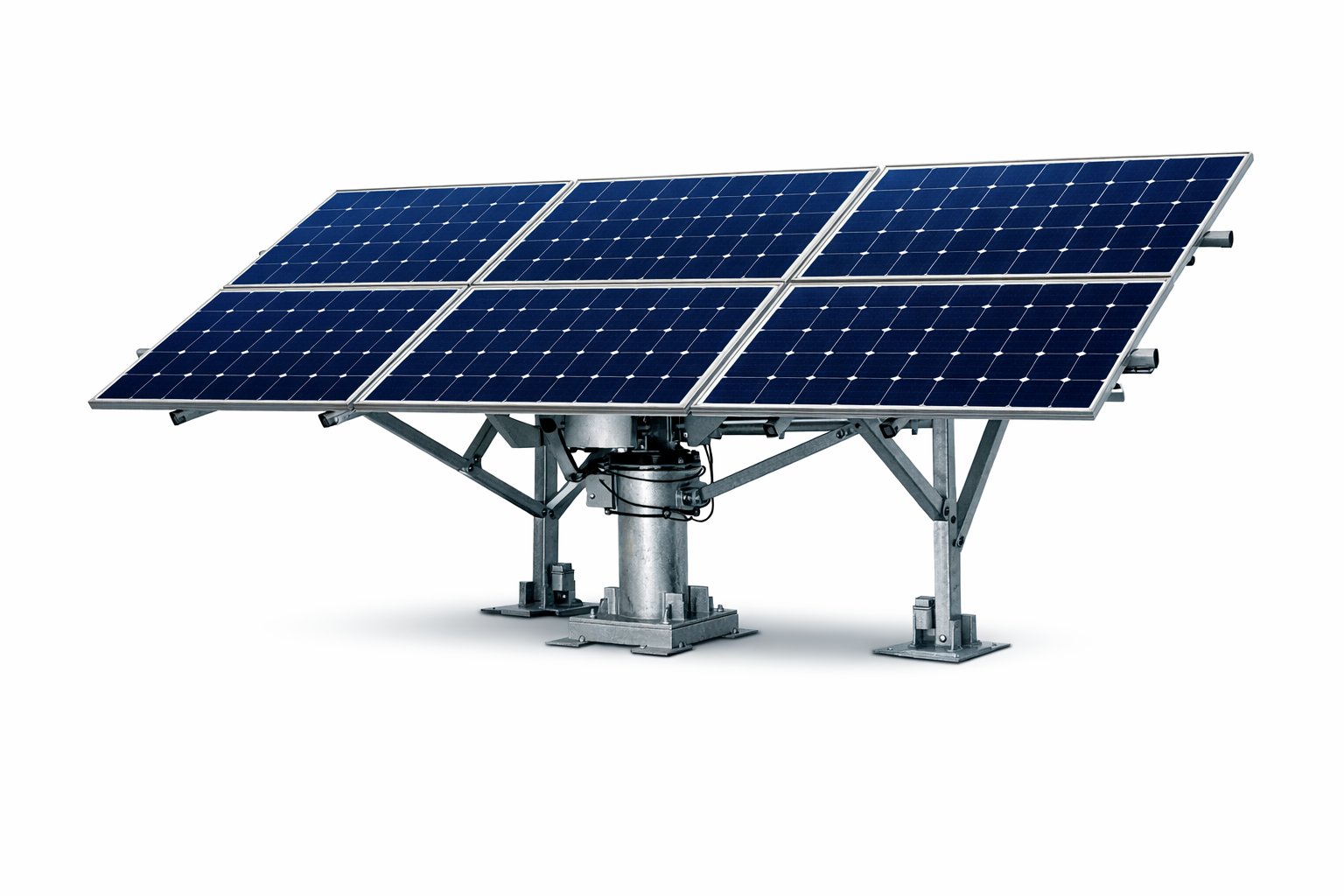

Horizontal Single-Axis Tracking System

Our tracking mount structures follow the sun's movement throughout the day, maximizing energy generation by up to 25–30% compared to fixed systems. Engineered for large-scale solar farms in Egypt's desert regions.

±60° Tracking Range — 120° Total Arc

Captures maximum direct solar radiation from dawn to dusk

≤2° Tracking Accuracy

High-precision drive system with real-time angle correction

190 kph Wind Load (3S Gust)

Storm-mode auto-stow protects panels in extreme winds

25–30% More Energy vs Fixed Systems

Proven performance gain for utility-scale solar farms

Tracking Specs

±60°Tracking Range

120°Total Rotation

≤2°Accuracy

190 kphWind Resistance

Horizontal single-axis tracker (HSAT) — ideal for utility-scale ground-mounted solar farms in flat desert terrain. Auto-stow in storm conditions for maximum panel protection.

Request Tracker Quote →

Technical Specifications

System Specifications

Key technical parameters for all RENIX solar mounting systems — certified by Cairo University DRTPC and ACE Consulting Engineers.

System	Application	Tilt Range	Wind Load	Warranty	Status
Concrete Floor Ground	Open land	≤40°	42 m/s	25 years	✓ Certified
Ground Ramming	Sandy / clay soil	≤60°	42 m/s	25 years	✓ Certified
Ground Pole	Rocky / varied soil	15°–45°	42 m/s	25 years	✓ Certified
Standard Flat Roof	Concrete flat roof	10° / 15°	—	≤25m building	✓ Certified
Corrugated Metal Roof	Industrial metal roof	Follows roof	—	All sizes	✓ Certified
Tile Roof	Residential / commercial	≤45°	—	≤20m building	✓ Certified
Adjustable Tilt Roof	Any flat roof	10°–45°	—	≤25m building	✓ Certified
Solar Carport	Parking areas	≤30°	42 m/s	25 years	✓ Certified
Horizontal Single-Axis Tracker	Utility solar farms	±60° dynamic	190 kph	25 years	✓ Certified

Find Your Perfect Mounting Solution

Our engineers will analyze your site conditions and recommend the optimal mounting configuration for maximum performance and durability.

Get Engineering Consultation → View Cabling Systems
